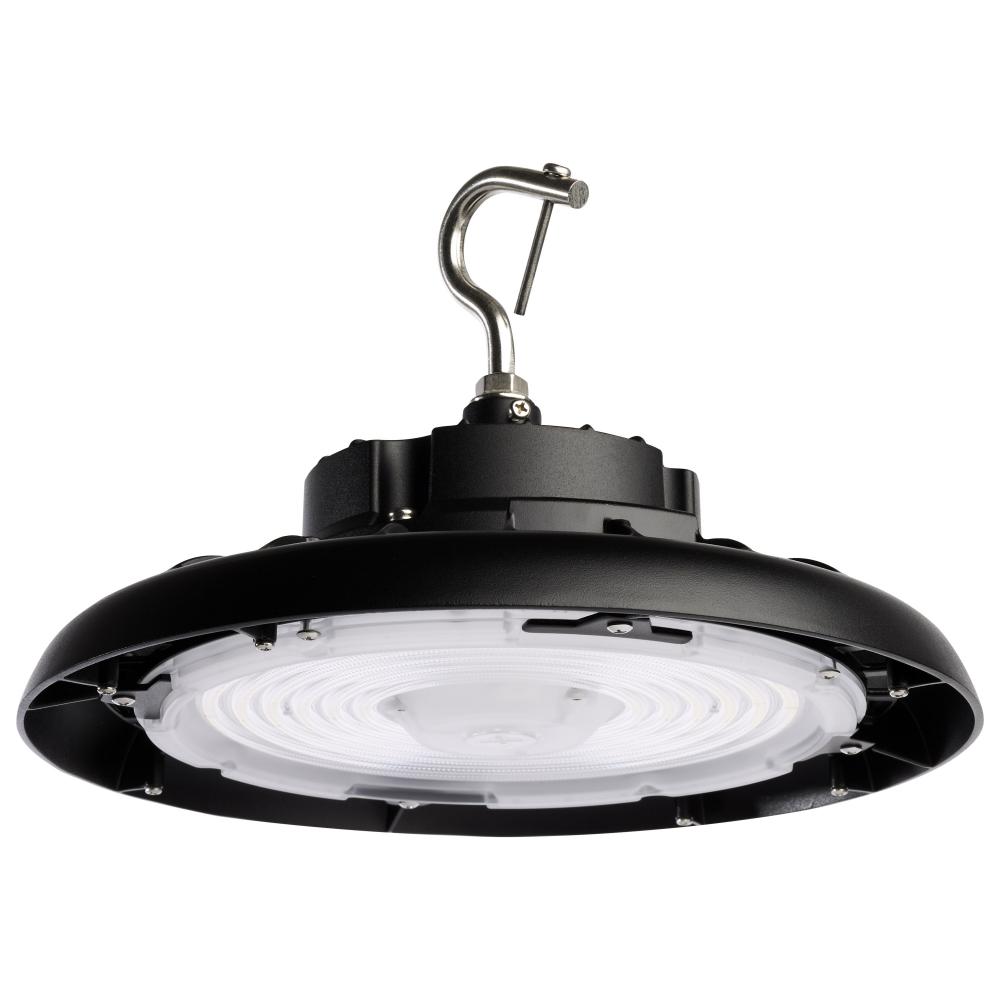

100 Watt UFO LED High Bay; 4000K; 14100 Lumens; 277-480 Volt; Black Finish (A64JP)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
121
73
/
/ 1
($121.73 / 1)
WAS
$
259
00
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A64JP
Dimensions:
Height: 8.11"
Width: 11.02"
Black
Availability:
- Manufacturer has 18 items available.
Recommended Items
Description
Details
Downloads
100 Watt UFO LED High Bay; 4000K; 14100 Lumens; 277-480 Volt; Black Finish
Internal #:
A64JP
Category:
Utility
Subcategory:
Other Utility
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Diameter:
11.02
Dimmable:
Yes-Dimmable
Each Height:
4.92
Each Length:
11.81
Each Width:
11.81
Lumens:
14100L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
0.361-0.208A
ANSI Base:
Integrated
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.3971
Each Quantity:
1
Efficacy:
141.00 LPW
FCC Compliant:
Yes
Feature 1:
Integrated Sensor Port
Feature 2:
IP65
Feature 3:
6KV Surge Protection
Feature 4:
6 Foot Whip
Feature 5:
90 degree Beam Angle
Feature 6:
50,000 Hours
Feature 7:
5 Year warranty
Finish Family:
Black
Has Emergency Battery:
No
HID Equiv:
250W
Impact Rating (IK):
IK08
Incandescent Equivalent:
600W
Includes:
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor:
Indoor
Installation Notes:
Mounting Height: Up to 20 feet
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
Introducing 65-801R2, SATCO NUVO's 100-watt, 277-480 volt, 4000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase fo
Material:
Die-Cast Aluminum
Mounting Procedure:
Pendant Hanging Surface
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Brown Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO NUVO's newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrat
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
LED UFO HIGHBAY 100W/4000K
Temperature (CCT):
4000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
6.58
