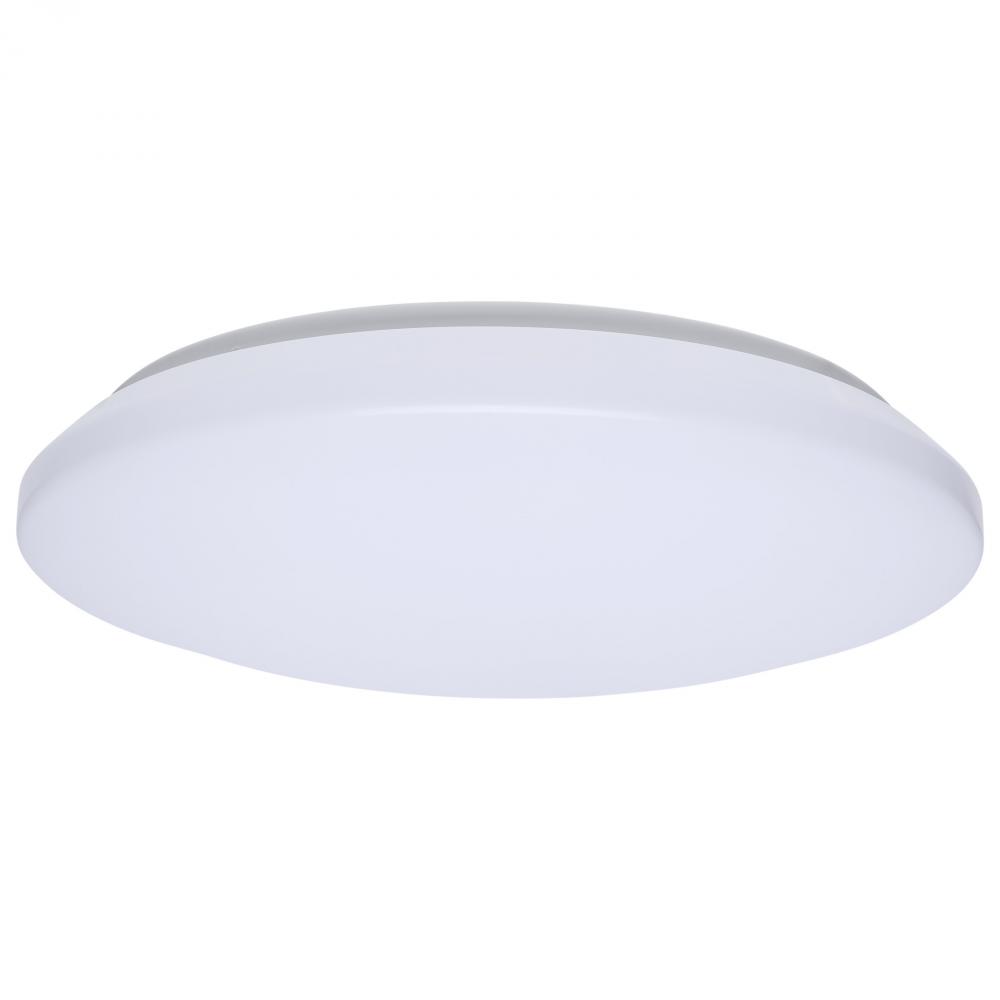

14 Inch LED Cloud Fixture; 17 Watts; 27K/30K/35K/40K/50K CCT Selectable; White Finish; Round Shape; (A9747)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
49
99
/
/ 1
($49.99 / 1)
WAS
$
87
33
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A9747
Dimensions:
Height: 3.15"
Width: 13.98"
White
Availability:
- Manufacturer availability unavailable.
Recommended Items
Description
Details
Downloads
14 Inch LED Cloud Fixture; 17 Watts; 27K/30K/35K/40K/50K CCT Selectable; White Finish; Round Shape; 120-277 Ranged Voltage
Internal #:
A9747
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
LED
, Prop 65
Category:
Close-to-Ceiling
Sub Category:
Flush
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
13.98
Dimmable:
Yes-Dimmable
Each Height:
14.76
Each Length:
14.76
Each Width:
3.35
Lumens:
1500L-1600L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - Fixtures
Amps:
0.142-0.061A
ANSI Base:
Integrated
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Closet Rated:
No
Country Of Origin:
Thailand
CRI:
90+
Dimmable Function:
0-10V Dimming Only
Each Cube:
0.4224
Each Quantity:
1
Efficacy:
88.23/91.18/94.12 LPW
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
90 CRI High Quality Light
Feature 3:
Range Voltage 120-277V
Feature 4:
14-Inch, Round Shape
Feature 5:
0-10V Dimming
Feature 6:
Durable, Non-yellowing PMMA Lens
Feature 7:
Damp Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
The SATCO NUVO 62-1861, 14-inch round LED Cloud fixture features 5 CCT selectable technology and a high 90 CRI rating, ensuring exceptional and uniform illumination. It is crafted with a durable, non-yellowing PMMA lens and is rated for damp locations, mak
Material:
Steel
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Cloud fixtures offer 5 CCT selectable technology and a high 90 CRI rating for exceptional, uniform illumination. Available in round or square designs with durable, non-yellowing PMMA lenses, they are rated for damp locations, making th
Safety Listing:
cETLus
SDS class:
LED_Fixture
Short Description:
14" LED CLOUD 120/277V 0-10V
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
1.34
