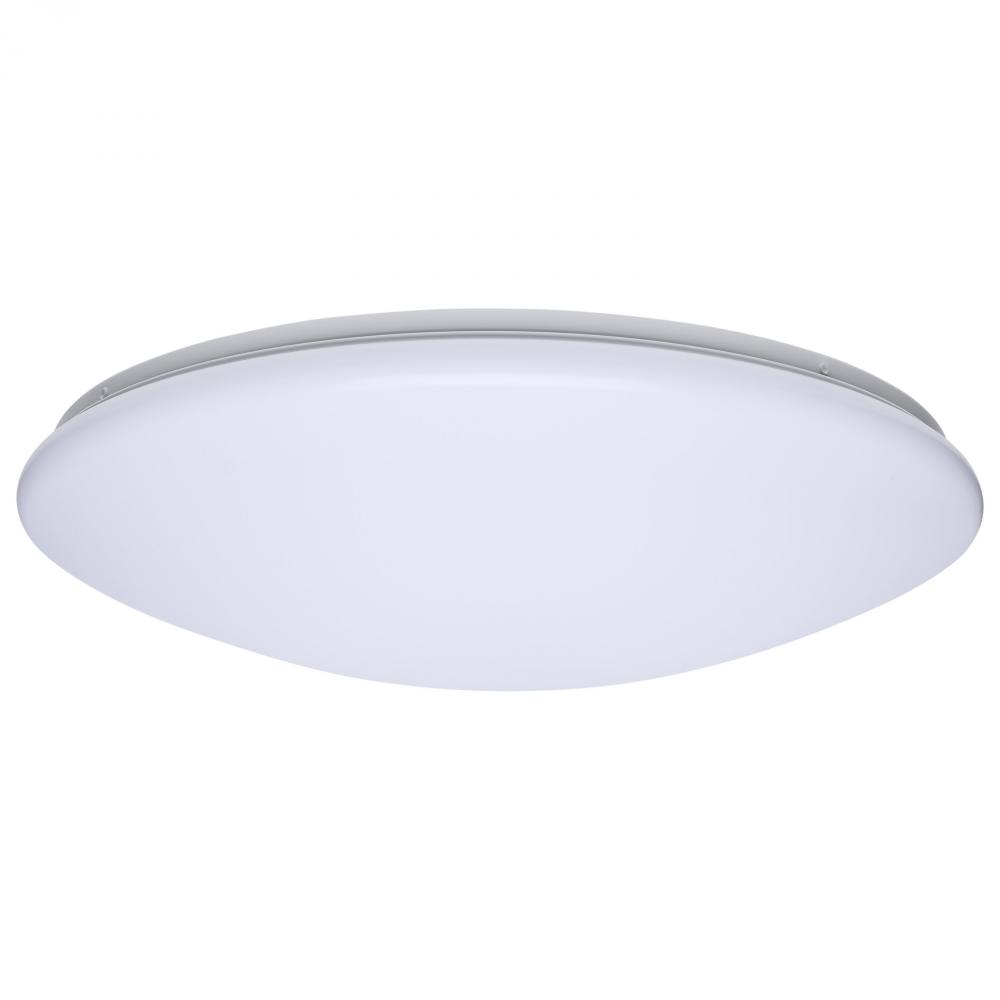

19 Inch LED Cloud Fixture with Sensor; 25 Watts; 27K/30K/35K/40K/50K CCT Selectable; Round Shape; (A9745)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
93
99
/
/ 1
($93.99 / 1)
WAS
$
164
50
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A9745
Dimensions:
Height: 4.13"
Width: 18.90"
White
Availability:
- Manufacturer has 79 items available.
Recommended Items
Description
Details
Downloads
19 Inch LED Cloud Fixture with Sensor; 25 Watts; 27K/30K/35K/40K/50K CCT Selectable; Round Shape; White Finish; 120 Volt
Internal #:
A9745
Category:
Flush Mounts
Subcategory:
Mushroom
Option:
LED
, Prop 65
Category:
Close-to-Ceiling
Sub Category:
Flush
Style:
Utility
Additional Info:
Microwave Sensor Minimum Room Size: 50 Square Feet
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
18.9
Dimmable:
Non-Dimmable
Each Height:
19.88
Each Length:
19.88
Each Width:
4.33
Lumens:
2527L-2732L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - Fixtures
Amps:
0.208A
ANSI Base:
Integrated
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Closet Rated:
Yes
Country Of Origin:
Thailand
CRI:
90+
Each Cube:
0.9903
Each Quantity:
1
Efficacy:
101.08/105.18/109.28 LPW
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
90 CRI High Quality Light
Feature 3:
NEC Compliant for use in Closets
Feature 4:
19-Inch, Round Shape
Feature 5:
Integrated Microwave Sensor
Feature 6:
Durable, Non-yellowing PMMA Lens
Feature 7:
Damp Location Rated
Feature 8:
5 Year Warranty
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
Incandescent Equivalent:
150W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
The SATCO NUVO 62-1859, 19-inch round LED Cloud fixture, offers versatile 5 CCT selectable technology and a high 90 CRI rating for exceptional, uniform illumination. Designed with a durable, non-yellowing PMMA lens, it is rated for damp locations, making i
Material:
Steel
Mounting Procedure:
Ceiling/Wall
NEC Compliance:
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Cloud fixtures offer 5 CCT selectable technology and a high 90 CRI rating for exceptional, uniform illumination. Available in round or square designs with durable, non-yellowing PMMA lenses, they are rated for damp locations, making th
Safety Listing:
cETLus
SDS class:
LED_Fixture
Sensor Detection Range:
12m x 3m Maximum
Sensor Field of View:
30 deg to 150 deg
Sensor Mounting Height:
19.69 Feet (6m) Maximum
Sensor Operating Temperature:
-20C (-4F) to 60C (+140F)
Sensor Operation:
Intergrated Microwave Sensor
Sensor Type:
Microwave
Short Description:
19" LED CLOUD FIXTURE W/SENSOR
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
2.65
