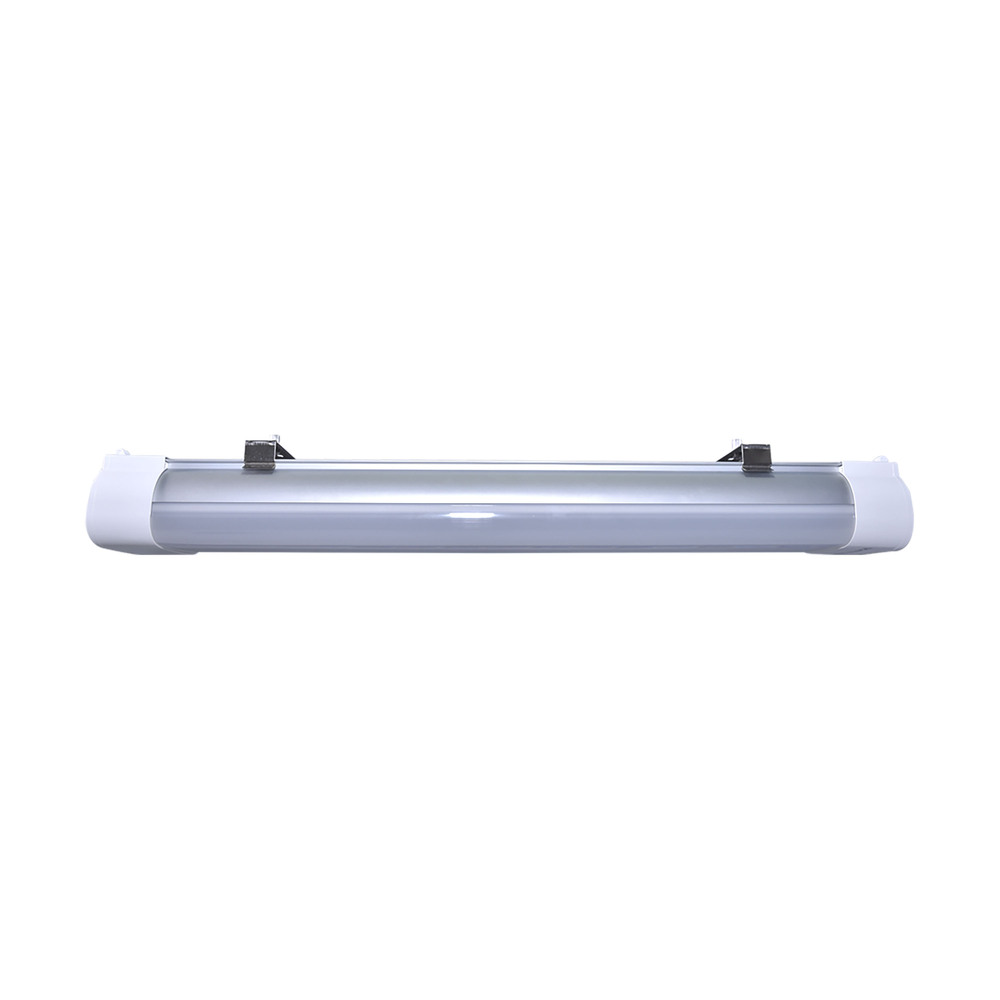

2 Foot; 20 Watt; LED Tri-Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming (A34U8)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
96
64
/
/ 1
($96.64 / 1)
WAS
$
205
63
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A34U8
Dimensions:
Height: 3.11"
Width: 3.98"
White / Gray
Availability:
- Manufacturer has 47 items available.
Recommended Items
Description
Details
Downloads
2 Foot; 20 Watt; LED Tri-Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming
Internal #:
A34U8
Category:
Track Ltg.
Subcategory:
Track Heads
Finish:
Combination Finishes
, Gray
, White
Style:
Traditional
Option:
LED
, Prop 65
Lumens:
1601-2600
Kelvin:
4001-4500
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
4.33
Each Length:
25.98
Each Width:
6.89
Length:
23.62
Lumens:
2065L-2249L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.200-0.072A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
115
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Standard
DLC Primary Use:
Direct Linear Ambient Luminaires
Each Cube:
0.4485
Each Quantity:
1
Efficacy:
103.25/107.85/112.45 LPW
FCC Compliant:
Yes
Feature 1:
Maintenance free; no bulb to change
Feature 10:
Suspension kit (sold separately)
Feature 2:
Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories
Feature 3:
IP65 and IK08 Rated
Feature 4:
CCT Selectable
Feature 5:
2KV built-in Surge Protection
Feature 6:
Non-corrosive (PC) polycarbonate housing
Feature 7:
0-10V Dimmable
Feature 8:
FCC and RoHS compliant
Feature 9:
5 Year Warranty
Finish Family:
White
Fixture shape:
Linear
Flicker Free:
No
Flr Equiv:
33W
Has Driver:
Yes
HID Equiv:
50W
Impact Rating (IK):
IK08
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's 65-830 20 watt, 2 foot Tri-Proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this dimmable fixture is CCT selectable and wet location rated, with 2KV surge protection. Versatil
Material:
Plastic
Mounting Procedure:
Surface: Bracket;Suspension: CablesChain
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
2' 20W LED TRI-PROOF LINEAR
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
11.70%
Wattage Selectable:
No
Weight Lb.:
2.65
