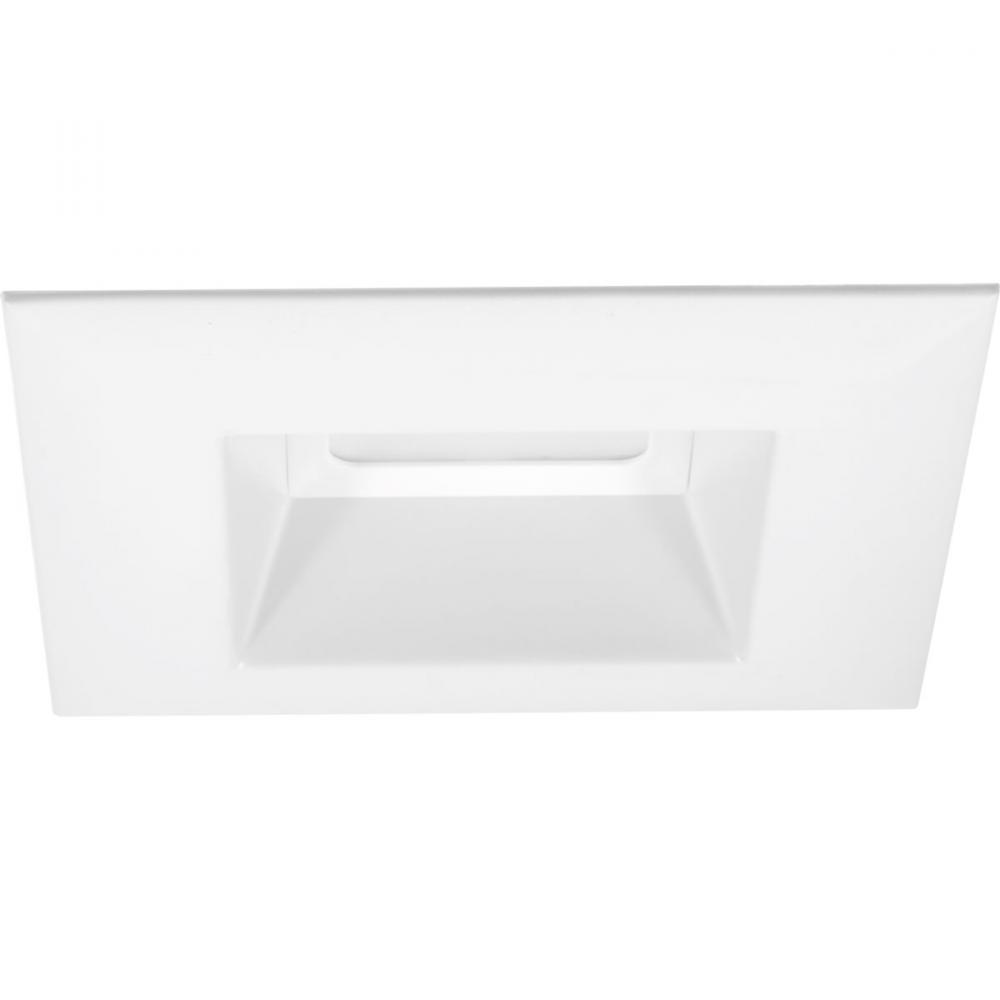

5" LED Square Recessed trim (AJ0Z9)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
58
10
/
/ 1
($58.10 / 1)
WAS
$
113
93
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
AJ0Z9
Dimensions:
Height: 0.31"
White
Energy Efficient
, Energy Star
, LED
, Title 24
, Wet Rated
Diffused
Availability:
- Manufacturer availability unavailable.
Included Items
Bulbs: (1) x 9 Watt LED
Description
Details
Downloads
The P8161 is ideal for use in both new construction as well as remodel/retrofit. The sleek geometric shape provides a high end appeal for residential and commercial spaces. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75% energy savings. The P8161 is equipped with both Edison base adaptor and quick link connector allowing easy installation in many standard round incandescent recessed housings.
Internal #:
AJ0Z9
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Style:
Traditional
Option:
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
Mount Type:
Flush Mount
Location Rating:
Wet Rated
Category:
Recessed-Trim
Family:
LED Retrofit Square
Voltage:
120 V
Number Of Bulbs:
1 Bulbs
Additional Info:
Spec Sheet click here
, Warranty Info click here
, Country of Origin- China
Bulb Hours:
50000
Bulb Type:
LED
Introduction Date:
06/01/2017
Kelvin:
3000
Keyword(s):
white;5 inch led square retrofit;white;solid state;led;recessed;recessed light;recessed light kit;recessed trim;trim;recessed housing;housing;recessed light trim;retrofit trim;led trim;led recessed trim
Lumens / Light Output:
694
Material:
Aluminum Diecast Housing - Construction
Max Height:
4
Ship Carton Height:
7.370
Ship Carton Length:
7.870
Ship Carton Width:
5.120
Ship Weight:
1.130
Special Features:
White Finish.;Diffused Polycarbonate Lens Controls Direct Glare From The Leds;Easy "Push And Twist" Installation With (3) Friction Spring Clips;Can Be Installed In Most 5" Round Recessed Housings;Dimmable To 10% With Many Triac/Forward Phase D
Warranty:
5 Year Warranty
Weight:
1.04
Color:
White
CRI:
90+
Dimming Compatability:
Lutron NTEVL-300;Lutron AYLV-600P;Leviton 6672
Dimming Protocol:
Triac/Forward Phase
Dimming Range:
10%
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Lens
LensShade Material:
Polycarbonate
Listed:
cCSAus
Mount Location:
Ceiling Flush/Recessed
Operating Temprature:
30º C
Overall Length With:
Overall Ht.
