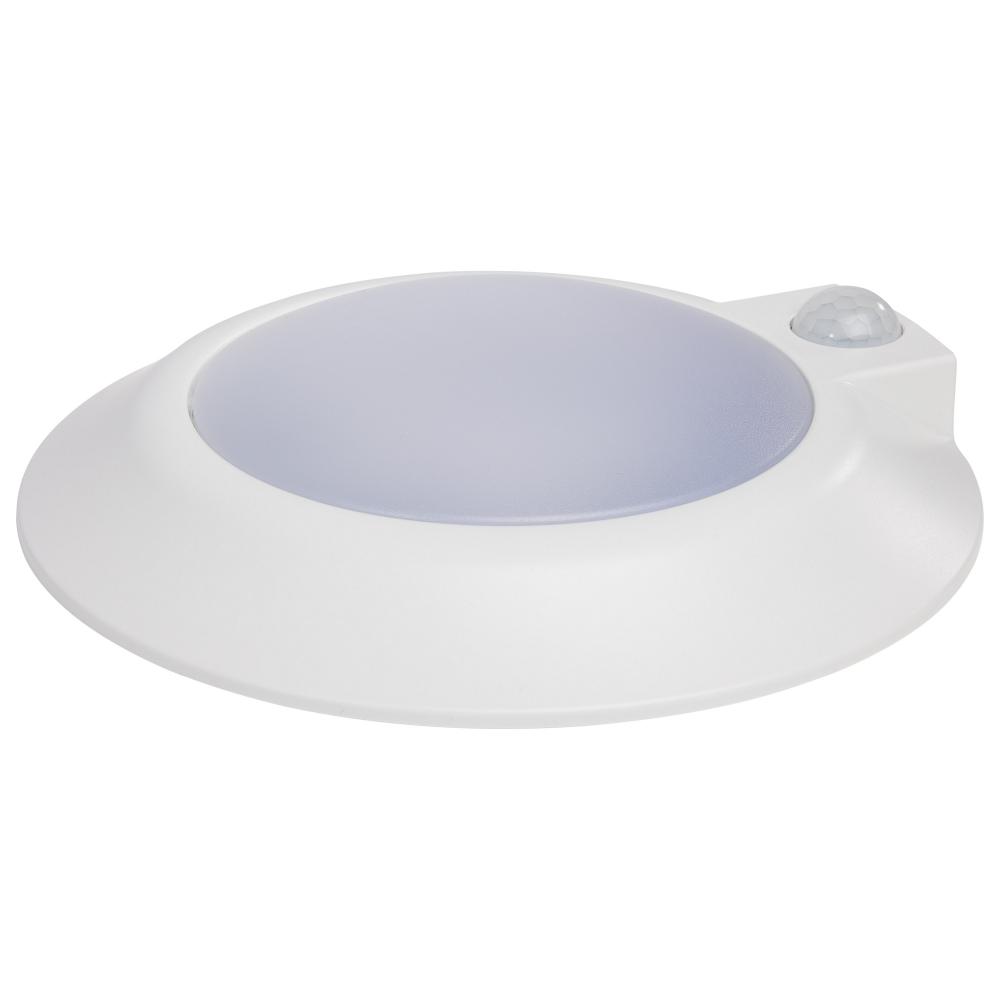

7 Inch; LED Disk Light; Fixture with Occupancy Sensor; White Finish; CCT Selectable (A67EV)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
39
99
/
/ 1
($39.99 / 1)
WAS
$
68
25
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A67EV
Dimensions:
Height: 1.42"
Width: 7.06"
White
Availability:
- Manufacturer has 2225 items available.
Recommended Items
Description
Details
Downloads
7 Inch; LED Disk Light; Fixture with Occupancy Sensor; White Finish; CCT Selectable
Internal #:
A67EV
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
LED
, Prop 65
Voltage:
100-120
Lumens:
801-1100
Category:
Close-to-Ceiling
Sub Category:
LED Disk
Style:
Contemporary
Bulb Volts1:
120V
Additional Info:
PIR sensor specs: Detection area up to 20ft max; Bi-level 30-100% or 0-100% with a minimum shut-off time of 0-3 sec to a maximum of 5 minutes.
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
7.06
Dimmable:
Non-Dimmable
Each Height:
7.28
Each Length:
7.28
Each Width:
1.574
Lumens:
900L-1000L
Tariff Code:
9405.11.8020
Warranty:
5 Year Limited - Fixtures
Amps:
0.133A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Closet Rated:
No
Connection:
Hardwire
Country Of Origin:
Malaysia
CRI:
93+
Dimmable Down To:
100 to 10 percent
Each Cube:
0.0483
Each Quantity:
1
Efficacy:
56.25/59.38/62.50 LPW
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
On/Off or 30 percent step down PIR Sensor
Feature 3:
93 CRI
Feature 4:
Damp Rated
Feature 5:
Mount to 3 inch and 4 inch Junction Boxes
Feature 6:
7.06 inch Diameter x 1.42 inch Height
Finish Family:
White
Fixture shape:
Round
Has Driver:
No
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
Installation Notes:
Keyhole Slots
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Acrylic
Long Description:
Introducing SATCO NUVO's 62-1820 LED CCT Selectable Disk Light, revolutionizing your lighting experience with Colorquick technology. This 7-inch, 16-watt disk light features integrated occupancy sensors and is ideal for Multi-Family and Residential loc
Material:
Steel
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
60Hz
Operating Temp:
-25C (-13F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Photocell:
Has Occupancy Sensor
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
57
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED CCT Selectable Disk Lights are equipped with integrated occupancy sensors, revolutionizing your lighting experience with our Colorquick technology. Available in 7-inch and 10-inch sizes, these disk lights are perfectly suited for vario
Safety Listing:
cETLus
SDS class:
LED_Fixture
Short Description:
7" LED DISK LIGHT W/ OCC WHITE
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
0.61
