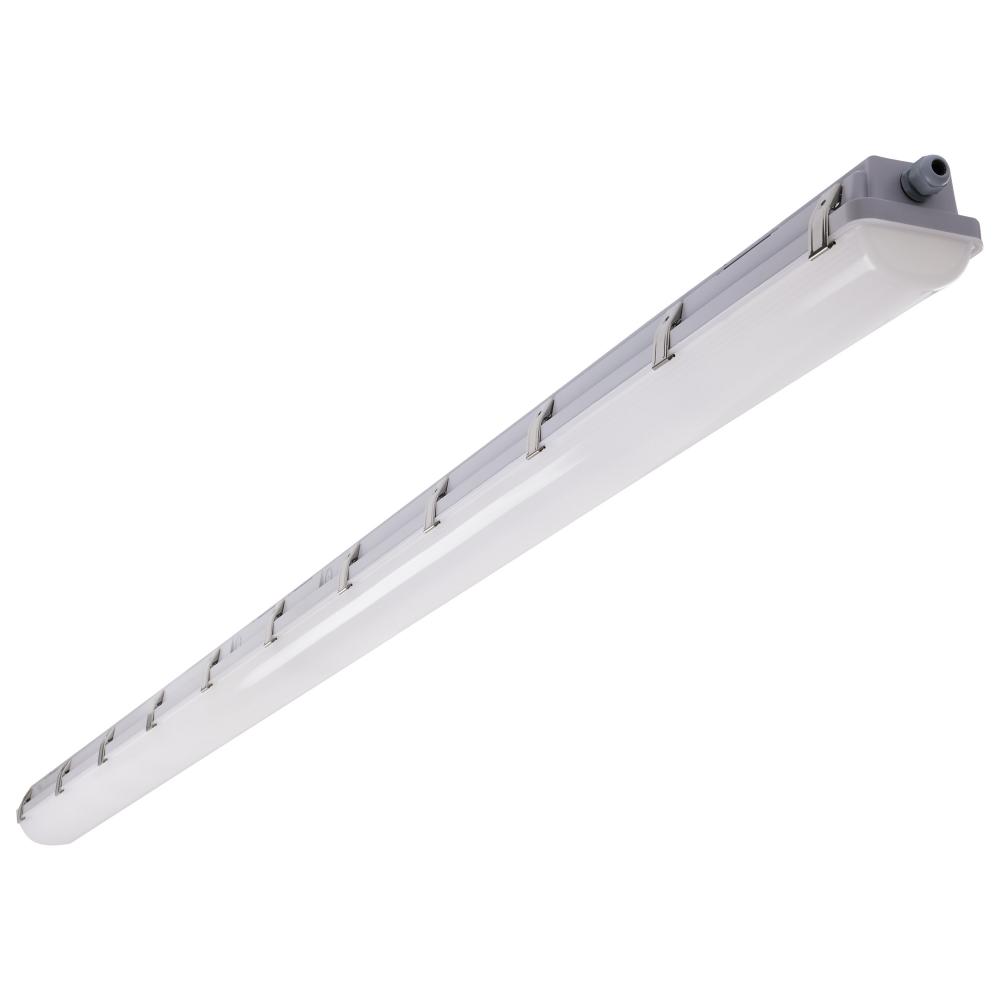

8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; (A64GA)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
225
37
/
/ 1
($225.37 / 1)
WAS
$
479
50
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
A64GA
Dimensions:
Height: 3.46"
Width: 4.33"
Gray
Availability:
- Manufacturer may be Out Of Stock.
Recommended Items
Description
Details
Downloads
8 Foot; Vapor Proof Linear Fixture; CCT & Wattage Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V
Internal #:
A64GA
Category:
Utility
Subcategory:
Other Utility
Finish:
Gray
Option:
LED
, Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Category:
Linear
Sub Category:
Vapor Proof
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
4.33
Each Length:
96.45999999999999
Each Width:
5.12
Length:
94.48999999999999
Lumens:
6400L-9360L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.417-0.144/0.500-0.173/0.600-0.207A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Thailand
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Standard; Standard
DLC Primary Use:
Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
Each Cube:
1.2375
Each Quantity:
1
Efficacy:
128.00/131.33/130.00 LPW
FCC Compliant:
Yes
Feature 1:
120-347 Voltage - FOR USE IN CANADA
Feature 2:
Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
Feature 3:
IP65 and IK08 Rated
Feature 4:
CCT and Wattage Selectable
Feature 5:
2KV built-in Surge Protection
Feature 6:
Non-corrosive (PC) polycarbonate housing
Feature 7:
0-10V Dimmable
Feature 8:
5 Year Warranty
Feature 9:
Suspension kit (sold separately)
Finish Family:
Gray
Fixture shape:
Linear
Flicker Free:
No
Has Driver:
Yes
HID Equiv:
150W-200W
Impact Rating (IK):
IK08
Incandescent Equivalent:
400W-500W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Opaque
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's 65-822R1 wattage selectable, 8 foot vapor proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this dimmable fixture is CCT and wattage selectable and wet location rated, with 2KV
Material:
Plastic
Mounting Procedure:
Ceiling/Wall
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.96
Quantity In Pack:
1
Rated For Vapor Tight Fixture:
Yes
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
8' LINEAR VAPOR PROOF
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
14.20%
Wattage Selectable:
Yes
Weight Lb.:
11.91
