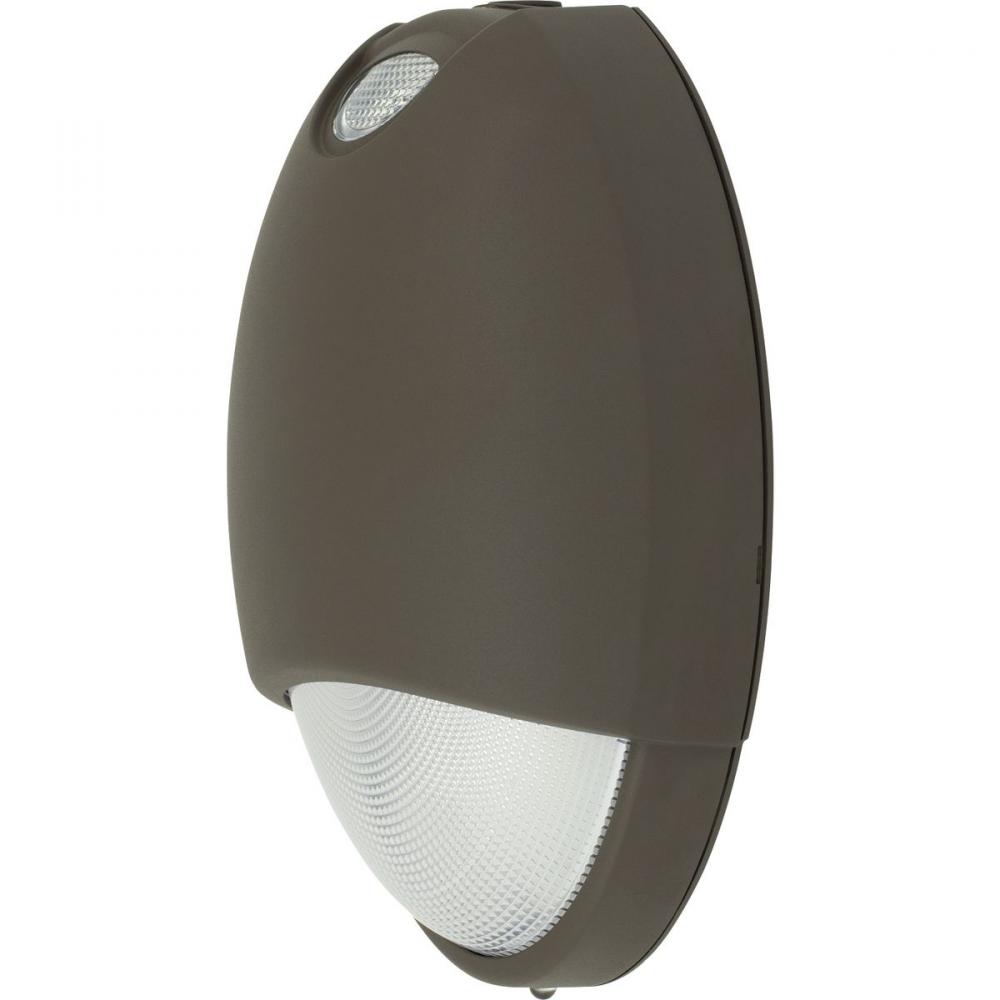

Decorative LED AC/Emergency Light (1VH37)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
307
91
/
/ 1
($307.91 / 1)
WAS
$
603
75
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
1VH37
Dimensions:
Height: 10.50"
Width: 6.13"
Length: 10.47"
Availability:
- Manufacturer availability unavailable.
Included Items
Bulbs: (2) x 3 Watt LED
Description
Details
Downloads
The PEOEU Series offers LED performance in "normally on" AC and emergency lighting modes. The unit has a prismatic polycarbonate refractor with a durable die-cast aluminum housing with a durable dark bronze powder coated finish. The housing is fully sealed and gasketed. It is designed for wall mounting with a universal K/O pattern in the back-plate for installation to most standard size junction boxes. Illumination is provided by 2 high power LEDs driven at 3 watts each. The PEOEU Series can be applied in areas that are susceptible to rain and severe moisture, such as parking decks and outdoor commercial applications.
Internal #:
1VH37
Category:
Utility
Subcategory:
Emergency Lights
Finish:
Bronze
Style:
Traditional
Option:
Energy Efficient
, Wet Rated
, LED
, Title 20
Mount Type:
Flush Mount
Kelvin:
5001-5500
Location Rating:
Wet Rated
Category:
Exit Sign/Emergency
Finish:
Bronze
Option:
Energy Efficient
, Title 20
, Wet Rated
Family:
Exit Signs
Glass:
Prismatic
Voltage:
Universal 100-300 VAC
Number of Bulbs:
2 Bulbs
Bulb Type:
LED
Depth:
3.63
Introduction Date:
01/16/2017
Kelvin:
5500
Keyword(s):
exit;emergency
Length:
10.47
Material:
Die-Cast Aluminum
Ship Carton Height:
4.00
Ship Carton Length:
12.00
Ship Carton Width:
7.75
Ship Weight:
4.00
Special Features:
LED life-cycle of more than 10 years.;Includes self-diagnostics feature to monitor proper operation.;Includes long-life, 4.8 VDC Nickel Cadmium battery for UL recognized 90 minute operation.;Universal 100-300VAC input.;Full re-charge within 24 hours.;Water
Vendor Ship Method:
Non UPS Shippable False
Warranty:
2 year full unit
Weight:
4.00
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb Base:
LED
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Oval
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Refractor
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
3
Lens Shade Material:
Polycarbonate
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
Yes
Prop 65 Description:
Reproductive Harm, Cancer
Room Type:
Emergency
Safety Rating:
UL924
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
No
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
6.125 in W.
